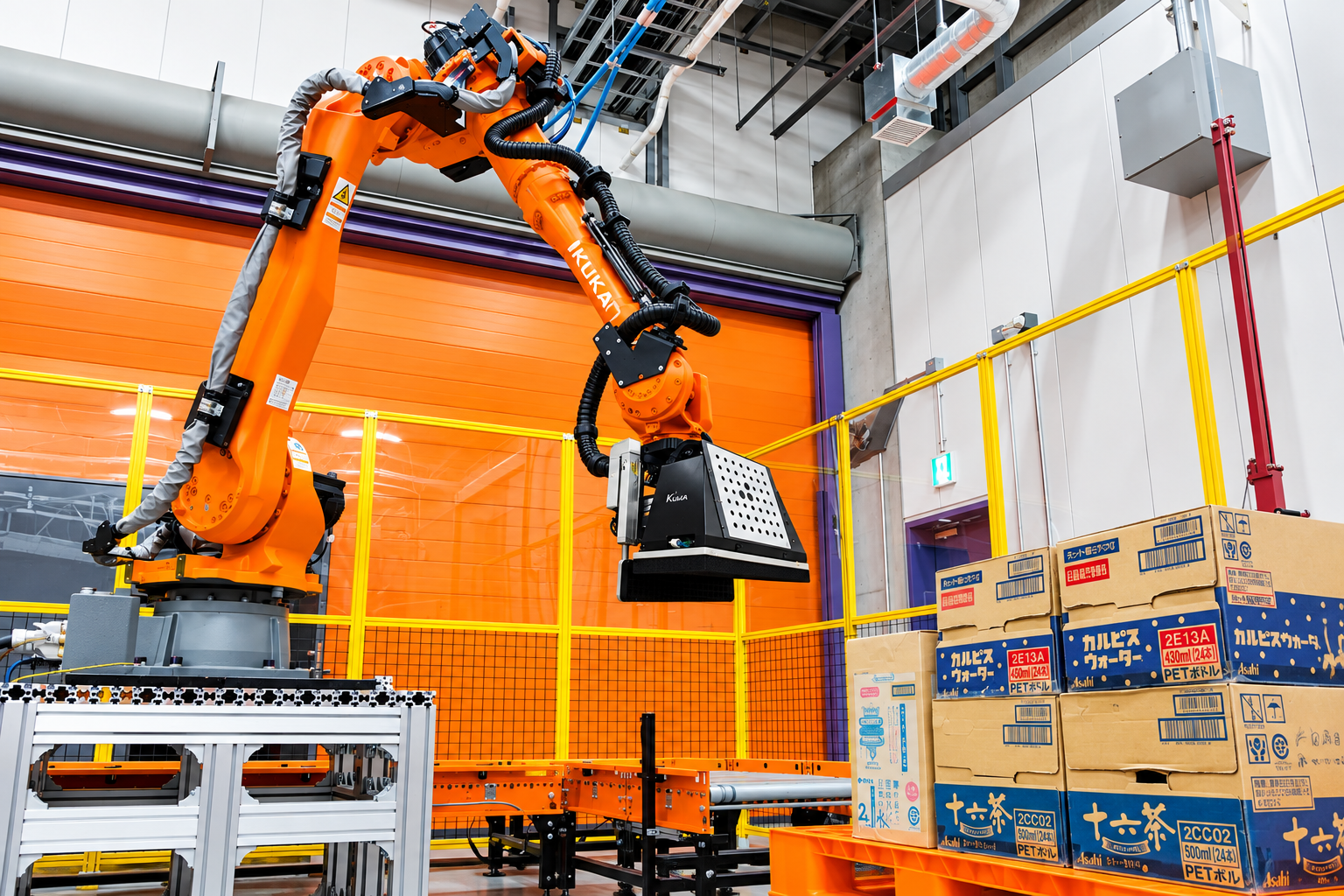

Get in TouchRobotic Depalletizer for Automated Pallet Unloading
HYWAY Depalletizing Systems are designed to automate the unloading of cartons, cases, bags and other packaged products from pallets and transfer them into downstream production, packaging, warehousing or distribution systems.
The system uses robotic handling, application-specific gripping technology and conveyor integration to remove products from pallets in a controlled sequence.
HYWAY can configure depalletizing systems according to product dimensions, product weight, pallet size, stacking pattern, required throughput and downstream process requirements.
Think Vertical. Move Smart.
Key Features
-
Automated Depalletizing – Automatic unloading of products from pallets.
-
Robotic Product Handling – Industrial robot configured with application-specific end-of-arm tooling.
-
Multiple Product Configurations – Suitable for compatible cartons, cases, trays, bags and other unit loads.
-
Programmable Unloading Patterns – Product unloading sequence can be configured according to the application.
-
Automatic Pallet Handling – Empty pallet discharge can be integrated into the system.
-
Conveyor Integration – Products can be transferred directly to downstream conveyors or production equipment.
-
Multi-SKU Capability – Suitable configurations can accommodate multiple product types and sizes.
-
Reduced Manual Handling – Automates repetitive pallet unloading operations.
-
Safety Integration – Safety guarding, interlocks, scanners and other applicable safety systems can be incorporated.
-
Complete Automation – Can be integrated with conveyors, pallet handling, inspection and other material-flow systems.
How Does a Robotic Depalletizer Work?
A loaded pallet is positioned at the depalletizing station manually or through an automated pallet conveyor.
The robot identifies the required product position and picks the product using a suitable gripper.
The product is then placed onto an outfeed conveyor or transferred to the required downstream location.
The process continues layer by layer until the pallet is empty.
Typical Process
The unloading sequence and robot movements are programmed according to the pallet pattern and downstream production requirements
Depalletizer Applications
Food & Beverage
Typical products include:
- Cartons
- Cases
- Bottles and containers in suitable secondary packaging
- Trays
- Multipacks
- Bags
FMCG
Depalletizing of finished goods and secondary packaging before processing, inspection, order fulfillment or distribution.
Dairy & Ice Cream
Suitable for compatible cartons, cases and packaged products used in dairy and frozen-food operations.
Beverage
Depalletizing systems can be designed for suitable cases, trays and secondary packaging.
Warehousing & Distribution
Automated unloading of palletized products before sorting, picking, storage or order fulfillment.
Manufacturing
Suitable for transferring palletized components, cases and finished products into downstream production or handling systems.
Depalletizer Configurations
Robotic Depalletizer
An industrial robot picks individual products or groups of products from the pallet and transfers them to a conveyor. Suitable for applications requiring flexibility in product handling and pallet patterns.
Layer Depalletizer
For suitable high-throughput applications, products can be removed layer-by-layer using dedicated handling arrangements. This configuration is particularly relevant where the product and pallet pattern allow efficient layer handling.
Single-SKU Depalletizer
Designed for applications where a consistent product and pallet configuration is handled.
Multi-SKU Depalletizer
Configured for applications involving different product dimensions, pallet patterns or product types, subject to robot reach, payload and tooling requirements.
Robotic Depalletizer with Automatic Pallet Handling
For a higher level of automation, HYWAY can integrate the depalletizer with pallet handling equipment.
This can be integrated with existing production or warehouse conveyor systems.
End-of-Line / Production-Line Integration
A depalletizer can be used as part of a larger automated material-flow system.
Example
Pallet Storage
- Pallet Conveyor
- Depalletizer
- Product Conveyor
- Accumulation
- Packaging / Production Line
- Robot Palletizer
- Finished Pallet
This creates a continuous material flow between palletized storage and production.
Robotic End-of-Arm Tooling
The gripper is selected according to the product being handled.
-
Vacuum Gripper – Suitable for compatible cartons, cases and products with appropriate surfaces.
-
Mechanical Gripper – Used where mechanical gripping is more appropriate for the product or packaging.
-
Layer Gripper – Designed to pick multiple products together where the pallet configuration and product characteristics permit layer handling.
-
Customized Tooling – Specialized tooling can be developed or selected for specific product shapes, dimensions and weights.
Final gripper selection depends on product dimensions, weight, packaging material, surface characteristics, pallet pattern and required cycle time.
Technical Specifications
|
Parameter |
Typical Configuration |
|
System Type |
Robotic / automatic depalletizing system |
|
Application |
Automated pallet unloading |
|
Products |
Cartons / cases / bags / trays / compatible unit loads |
|
Robot |
Industrial robotic arm |
|
Payload |
As per product and tooling |
|
Robot Reach |
As per pallet and conveyor layout |
|
Product Weight |
As per robot and gripper selection |
|
Pallet Size |
As per application |
|
Product Dimensions |
As per application |
|
Pallet Pattern |
Programmable / application-specific |
|
Depalletizing Method |
Individual product / layer / customized |
|
Gripper |
Vacuum / mechanical / layer / customized |
|
Product Outfeed |
Belt / roller / application-specific |
|
Pallet Handling |
Manual / automatic |
|
Empty Pallet Discharge |
Optional |
|
Empty Pallet Stacking |
Optional |
|
Control |
PLC + robot controller |
|
Safety |
Guarding / interlocks / safety devices |
|
Production Rate |
As per product, pattern and cycle time |
Final specifications depend on product dimensions and weight, pallet configuration, required throughput, robot selection, tooling and site layout.
Multiple SKU Depalletizing
Many modern production and distribution environments handle more than one product configuration.
HYWAY depalletizing systems can be engineered for suitable multi-SKU applications by considering:
- Product dimensions
- Product weight
- Pallet dimensions
- Stacking pattern
- Product orientation
- Gripper capability
- Robot reach
- Required cycle time
The control system can be configured to select the appropriate unloading sequence according to the production requirement.
Why Choose HYWAY Depalletizing Systems?
-
Application-Specific Engineering – The robot, tooling, conveyor and pallet-handling system are selected according to the actual product and process.
-
Flexible Product Handling – The system can be designed for compatible cartons, cases, bags, trays and other unit loads.
-
Integration with Conveyors – HYWAY can integrate the depalletizer with belt conveyors, roller conveyors, accumulation conveyors and other material-handling equipment.
-
Automated Pallet Handling – Empty pallet discharge and stacking can be incorporated where required.
-
Complete Material Flow Solution – The depalletizer can be integrated with pallet conveyors, production lines, robotic palletizers and other automation systems.
Industries We Serve
- Food Processing
- Dairy
- Ice Cream
- FMCG
- Snacks & Bakery
- Fruits & Vegetables
- Quick Commerce
- E-Commerce
- Warehousing & Logistics
- Manufacturing
Frequently Asked Questions
- Product dimensions
- Product weight
- Pallet dimensions
- Pallet height
- Products per layer
- Number of layers
- Pallet pattern
- Required throughput
- Number of SKUs
- Product orientation
- Downstream conveyor details
- Available installation space
